Software Installation

Supported Operating Systems

  • Windows
  • Macintosh (macOS)

⚠️ Important: Do not connect the USB cable until you are instructed to do so.

To use the printer with your computer, you must install the required drivers and software. The installation process typically takes about 20 minutes, depending on your system configuration and selected components.

Before You Start

  • Close all open applications.
  • Log in using an Administrator account.
  • Do not change users during installation.
  • An active internet connection may be required (data charges may apply).
  • Your computer may restart during installation.
    • Do not remove the Setup CD-ROM if a restart occurs; installation will resume automatically.

Windows Installation

If the USB Cable Was Connected Too Early

Windows 7

  • Disconnect the USB cable.
  • Proceed to Step 1.

Windows Vista / Windows XP

a1ad84270eed49fdbcb98cfbe6205fcf g0100101 (1)

  • Disconnect the USB cable.
  • Click Cancel if a dialog box appears.
  • Continue with Step 1.

Easy-WebPrint EX (Windows)

34ea154f0e4843cea6bb941cd943fda9 g0099654 (1) (1)


This utility installs automatically with the software.
Requirement: Internet Explorer 7 or later and an active internet connection.

Step 1: Prepare the Computer

aae1ade1e3c94bacbbaac4806430c738 g0082452 (1)

  • Ensure the printer is powered off.
  • Turn on the computer.
  • Insert the Setup CD-ROM.

If the setup does not launch automatically:

  • Open Computer / My Computer
  • Double-click the CD-ROM drive
  • Run MSETUP4.EXE

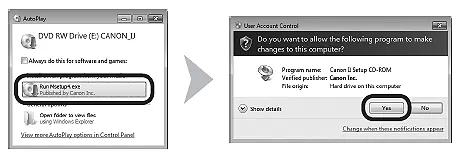

Step 2: User Account Control

aa7cc7b87503495db892e98df0bc0520 g0100125 (1)

  • Click Run MSETUP4.EXE
  • Select Yes or Continue when prompted

Step 3: Select Language and Region

722bdeea7cec440a938d44658fdfbb92 g0100506 (2)

  • Choose your location and country/region
  • Click Next

Step 4: Select Installation Type

f71aeaf722f74ec5926292dec34aa3a1 g0100507 (2)

  • Easy Install (Recommended): Automatically installs drivers, applications, and manuals
  • Custom Install: Choose specific items to install

Step 5: Begin Installation

596028e2a2d242429dd75cab0f533c6d g0100105 (2)

  • Click Install
  • Follow the on-screen instructions

USB Connection Step

When prompted:

  • Connect the printer to the computer using a USB cable
  • Turn ON the printer
    (USB port is located on the back-right side of the printer)

Step 6: Paper Setup

d46baa5ca6394038a6dfe497c6740a06 g0100106 (2)

  • Extend the Paper Output Tray
  • Load A4 or Letter-size plain paper into the Rear Tray
  • Click Execute

Step 7: Print Head Alignment

91bb79d2953642ca8a2221e5577fe1e7 g0100107 (1)

  • Click Align Print Head
  • Select OK to begin
  • Alignment takes approximately 3 minutes
  • Do not open the top cover during alignment

Step 8: Completion

d147d106b38f4e2ba9b35820bee2210c g0100111 (1)

  • Remove the printed alignment sheet
  • Click Next

⚠️ If the orange Alarm light flashes:

  • Press RESUME/CANCEL
  • Click Next

Additional Notes

59387faf39ff47959745922927931814 g0099663 (1)

  • If the serial number is not detected automatically, enter it manually (located inside the printer).
  • The Print Head Holder may move when the top cover is opened while powered on.
  • User Registration appears only in Europe, Middle East, and Africa.
  • The Extended Survey Program is optional and does not affect printer functionality.

Step 9: Finish

436db32513dc447d92962c8820be84a1 g0099665 (1)

  • Click Exit
  • Solution Menu EX launches automatically
  • Remove and safely store the Setup CD-ROM

Optional (Windows 7 / Vista SP1+)

  • To install the XPS Printer Driver:
    • Choose Custom Install
    • Select XPS Printer Driver

Macintosh (macOS) Installation

Easy-WebPrint EX (Mac)

8d7f5e5c31034a4984a1e7caaad8a5c8 g0099669 (1)


Automatically installs with the software.
Requirement: Safari 4 or later (macOS 10.5+) and internet access.

Step 1: Power Off the Printer

  • Press the ON button
  • Wait until the printer shuts down completely
  • Do not connect the USB cable yet

Step 2: Prepare the Mac

26294ccc0c044d9aa3371a84fdc0008c g0082465 (1)

  • Confirm the printer is turned off
  • Power on the Mac
  • Insert the Setup CD-ROM

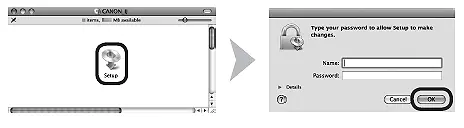

Step 3: Start Setup

b5b9fc070ce74c0bad738990b7c787ca g0100121 (1)

  • Open the CD-ROM folder
  • Double-click the Setup icon
  • Enter the administrator username and password

Step 4: Select Language and Region

722bdeea7cec440a938d44658fdfbb92 g0100506 (3)

  • Choose your location and country/region
  • Click Next

Step 5: Select Installation Type

f71aeaf722f74ec5926292dec34aa3a1 g0100507 (3)

  • Easy Install: Installs drivers, applications, and manuals automatically
  • Custom Install: Select specific items if required

Step 6: Install

596028e2a2d242429dd75cab0f533c6d g0100105 (3)

  • Click Install
  • Follow the on-screen instructions

d46baa5ca6394038a6dfe497c6740a06 g0100106 (3)

USB Connection Step

When prompted:

  • Connect the USB cable
  • Turn ON the printer

Step 7: Paper Setup

67c6ed2d77d44472a0098d0e6061f248 g0100118 (1)

  • Extend the Paper Output Tray
  • Load A4 or Letter-size paper
  • Click Execute

Step 8: Print Head Alignment

  • Click OK to start
  • Alignment takes about 3 minutes
  • Do not open the top cover during alignment

Step 9: Finish

bdfe48b50e13480fa42147384ff017d4 g0100117 (1)

  • Remove the printed paper
  • Clear any alarm light if it appears
  • Complete the installation

Step 10: Completion

  • Click Exit
  • Solution Menu EX launches automatically
  • Remove and safely store the Setup CD-ROM
